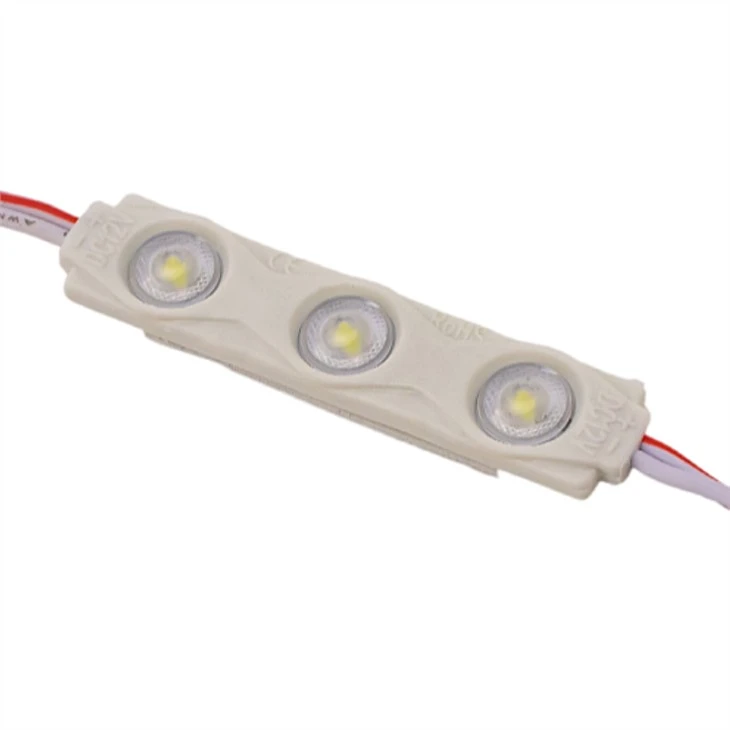

12v 1.5w Led Backlight Module

12v 1.5w led backlight module is led injection module,it With a low power consumption and high lumen value, a long life-span, It is the best choice for lighting up the back of billboards

The addition of diffuse optical lens on the light source makes the optical Angle larger and brighter, without stain

12v 1.5w led backlight module Parameter:

Feature:

1.The parallel connection of the led backlight modules is necessary. It requires additional power lines to be connected at both ends of the modules for replenishment. The LED modules do not support serial connections. The serial connection generates a voltage drop

2.The12v 1.5w led backlight module has a high-quality PVC injection molding process, it has 160 Angle optical lens, 1.5w power from every Angle to show the perfect brightness, so that it emits uniform light during use, no stains

3.12v 1.5w led backlight module With OEM and ODM services, we are the customized factory in China, which can meet all the customized needs of customers

4.Our wire core is pure copper wire core, the use of safe and reliable, has better electrical conductivity to the current

Applications:

SMD 2835 12V LED Module light is used usually for Billboard, Signage and illuminated advertising, As the Backlighting of channel letters and light box

Package:

Every 20 pcs per a string, every 10 string inan anti-static bag, 5000 pcs per a carton box. Carton size: 58*30*30 cm.

Net Weight: 5 g/pcs; 100 g/string; 25kg/carton.

Why did our Customers choose us?

---Reply < 3 hours.

Delivery time > 99%.

Quality Control > 99%

After-sales Service > 99%

100% QC inspection Before the timely delivery of the goods.

Installation methods:

1:PE foam back

2:screw hole, screw fixed;

Delivery

by express(EMS,UPS,DHL,TNT,FEDEX and ect).5-7days

By air,10-15days

By sea,30-50days

By train,30-40days

LED Module FAQ

1.Can LED modules be used in outdoor applications?

-,yes,LED modules can be used in outdoor applications, but it is important to choose modules that are specifically designed for outdoor use and that have appropriate levels of weatherproofing and durability. Outdoor LED modules may include features such as waterproof housing, corrosion-resistant materials, and high-temperature tolerance.

2.How do you connect LED module lights?

1. Select the power supply: The LED module lamp needs a power supply connection with appropriate power.

2. Determine the correct polarity: the LED module has two wires, a positive pole and a negative pole.

3. Strip the wires: Strip the insulation of the positive and negative wires. Make sure you don't strip too much wire and cable.

4. Cable connection: Connect the power supply. Positive ends meet positive ends, negative ends meet negative ends.

5. Turn on the power: Turn on the power and check whether the LED module indicator works normally.
