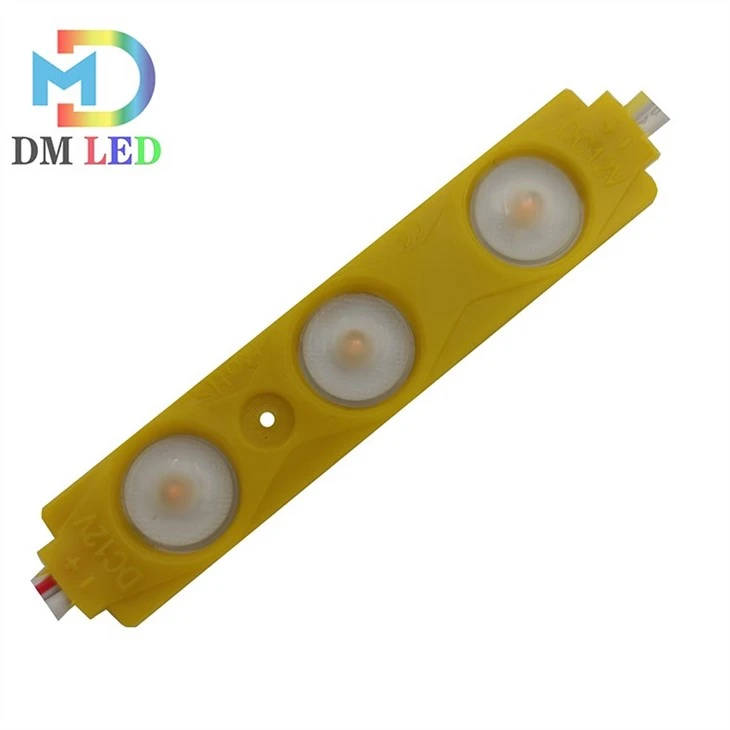

LED Injection Module for Billboard
The SMD led module is very popular in the world lighting field, It has the characteristics of good heat dissipation, high cost performance, ultra-high brightness and so on.
LED injection module for billboard and signage.
Parameter
Model: | 7015 led injection module |
Chip: | SMD2835 |
Size: | 70*15mm |
Colors: | White,Red,Blue,Green,Yellow,Pink,Purple |
Power（W）: | 1.5Watts |
Voltage: | DC12V |
Color Temperature: | 3000-20000K |
Lumen/module: | 150ML |
Operation temperature: | -25°C~60°C |
IP Rate: | IP65 |
Beam Angle: | 160°degree |
Certification: | CE and ROHS |
Life time: | 20,000hrs |
Warranty: | 3 Years |
Dimmable: | No |
Weight(KG): | 0.0065kg |
Material: | Aluminum PCB+PVC |
Country of origin: | China |
Usage: | Channel Letter.light Box.backlight,signage |
Feature
· Parallel connection is necessary. LED modules do not support serial connections. A serial connection produces a voltage drop |
·Diffuse optical lens is used to make the optical Angle larger and brighter, without stain |
·High quality PVC injection molding process with 160 angle optical lens, beautiful appearance, good heat dissipation |
·Adopt pure copper wire core, more safe and reliable |
·The 20pcs modules in one string, and a single module can be cut |
·Super high brightness with best price, quality guarantee more than 3years |
·DC12V low voltage input, safe and reliable, waterproof IP65 |
Applications
This product is used usually for Billboard, Signage and illuminated advertising, As the Backlighting of channel letters and light box，LED injection module for billboard.
Package
Every 20 pcs per a string, every 10 string inan anti-static bag, 4000 pcs per a carton box. Carton size: 58*30*30 cm.
Net Weight: 6.5 g/pcs; 130 g/string; 26kg/carton.
Our service
Led sign modules, led flex strips, led neon flex are our main products for sign projects.
All products with CE, ROHS certificated.
1.For all your inquiries led edge module lights, we will reply you in detail within 24 hours.
2. We have well-trained and passionate sales & after-sale services who can speak fluent English language.
3. We offer OEM services. Like print your own logo on product or customize the retail box packing ,etc.
4. We have very experienced R&D engineers and we have strong ability to do ODM projects.
LED Module FAQ
1.What's your minimum order quantity?
-Our MOQ is 200pcs per color for each model
2.What Certificates do you have?
-At present, we have regular CE and ROHS certificates, as well as quality system certification and export demand certificates of some countries
