How to Replace a Damaged 3030 LED Side Lighting
As a supplier of 3030 LED side lighting, I understand the importance of having well - functioning lighting solutions. Over time, LED side lighting may get damaged due to various reasons such as physical impact, electrical issues, or simply reaching the end of its lifespan. In this blog post, I will guide you through the process of replacing a damaged 3030 LED side lighting.
Step 1: Safety First
Before you start the replacement process, it is crucial to ensure your safety. Turn off the power supply to the lighting system. This can prevent electrical shocks and potential damage to the new LED module. You can locate the circuit breaker that controls the lighting and switch it off. If possible, use a voltage tester to double - check that there is no electrical current flowing through the wires.
Step 2: Gather the Necessary Tools
To replace the 3030 LED side lighting, you will need a few tools. These include a screwdriver (usually a Phillips - head or flat - head, depending on the type of screws used to secure the lighting), wire cutters/strippers, and a replacement 3030 LED side lighting module. Make sure the replacement module has the same specifications as the original one, such as voltage, color temperature, and wattage.
Step 3: Remove the Old LED Side Lighting
Once you have turned off the power and gathered the tools, it's time to remove the old LED side lighting. Start by carefully removing the cover or housing of the lighting fixture. This may involve unscrewing a few screws or gently prying it open. Be cautious not to damage the cover during this process.
Next, locate the wires connected to the LED module. There are usually two or more wires, typically colored red (positive) and black (negative). Use the wire cutters to carefully cut the wires close to the LED module. Make sure to leave enough length on the wires for the new connection.
After cutting the wires, you can now remove the old LED module from the fixture. It may be held in place by clips or adhesive. If it's held by clips, gently release them. If it's attached with adhesive, use a flat tool to carefully separate the module from the fixture.
Step 4: Prepare the New LED Side Lighting
Take the new 3030 LED side lighting module and check it for any visible damage. Make sure the pins or connectors on the module match the wiring in the fixture. If necessary, use the wire strippers to remove a small portion of the insulation from the ends of the wires on the new module. This will expose the metal conductor for a proper electrical connection.
Step 5: Connect the New LED Side Lighting
Now, it's time to connect the new LED module to the existing wiring. Match the positive and negative wires correctly. Usually, the red wire on the module should be connected to the positive wire in the fixture, and the black wire to the negative wire. You can use wire connectors or solder the wires together for a more secure connection. If you choose to solder, make sure to use proper soldering techniques and allow the solder joints to cool completely before proceeding.
Once the wires are connected, carefully place the new LED module into the fixture. If there are clips, secure the module in place using them. If it's an adhesive - based installation, apply a small amount of adhesive to the back of the module and press it firmly onto the fixture.
Step 6: Reassemble the Lighting Fixture
After installing the new LED module, it's time to reassemble the lighting fixture. Place the cover or housing back onto the fixture and secure it with the screws. Make sure all the parts are properly aligned and tightened.
Step 7: Test the New LED Side Lighting
Finally, turn on the power supply to the lighting system. Check if the new 3030 LED side lighting is working properly. If it doesn't light up, double - check the wiring connections to ensure they are correct and secure. You may also need to check if the power supply is providing the correct voltage.

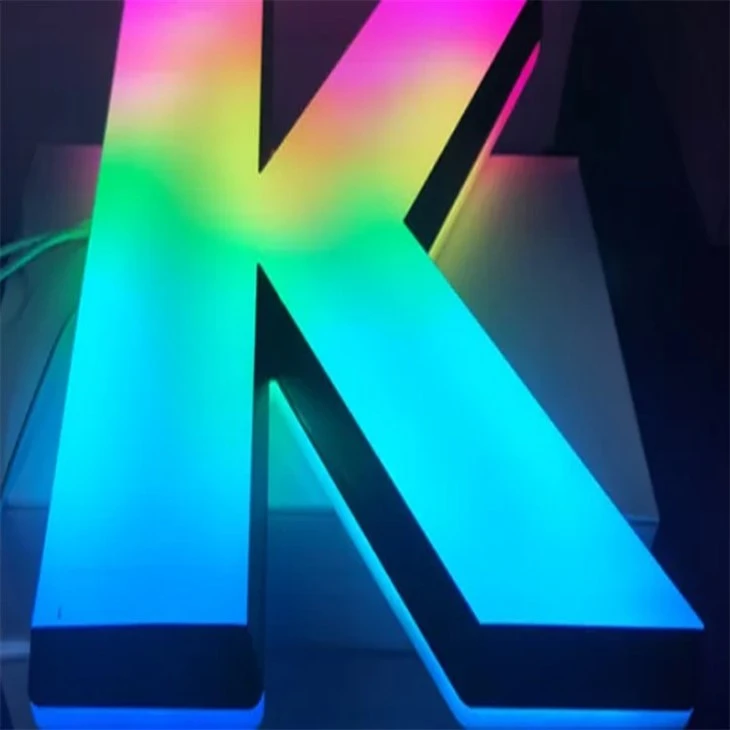

In addition to 3030 LED side lighting, we also offer a variety of other high - quality LED products. For example, the SMD5050 RGB IC 12v Led Module is a great option for creating colorful lighting effects. It has an integrated IC that allows for easy control of the RGB colors.
Another product worth mentioning is the 12v Ultrasonic Led Modules Light. This module combines the features of LED lighting with ultrasonic technology, which can be used in various applications such as smart home lighting and security lighting.
We also have the IP65 Led Module For Channel Letter, which is specifically designed for outdoor channel letter signs. It has a high - level of water and dust resistance, ensuring long - term reliability in harsh environmental conditions.
If you are interested in any of our products, including the 3030 LED side lighting, we encourage you to contact us for procurement and further discussions. We have a team of experts who can provide you with detailed product information, technical support, and competitive pricing. Whether you are a small business owner looking for lighting solutions for your store or a large - scale lighting contractor, we can meet your needs.
